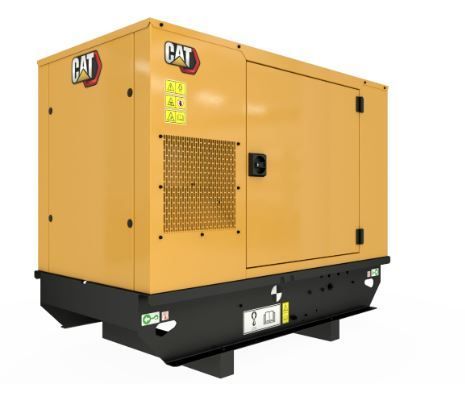

CAT GENSET DE13.5E3
+2

CAT GENSET DE13.5E3

Store / Generators / Large Diesel
AU$0.00
In stock
Product Details

BENEFITS & FEATURES

CAT GENERATOR SET PACKAGE
  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements
CAT DIESEL ENGINE
  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR500 ALTERNATOR
  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation
GCCP CONTROL PANEL
  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements
COOLING SYSTEM
  • Designed to operate in standard ambient temperatures up to 50°C (122°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities
CERTIFICATIONS
  • EU Declaration of Conformity
  • EU Declaration of Incorporation
  • Eurasian Conformity (EAC)
ONE SAFE SOURCE
  • Components used in the generator set are selected based on seamless design integration to provide the optimum performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system
WORLD WIDE PRODUCT SUPPORT
  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

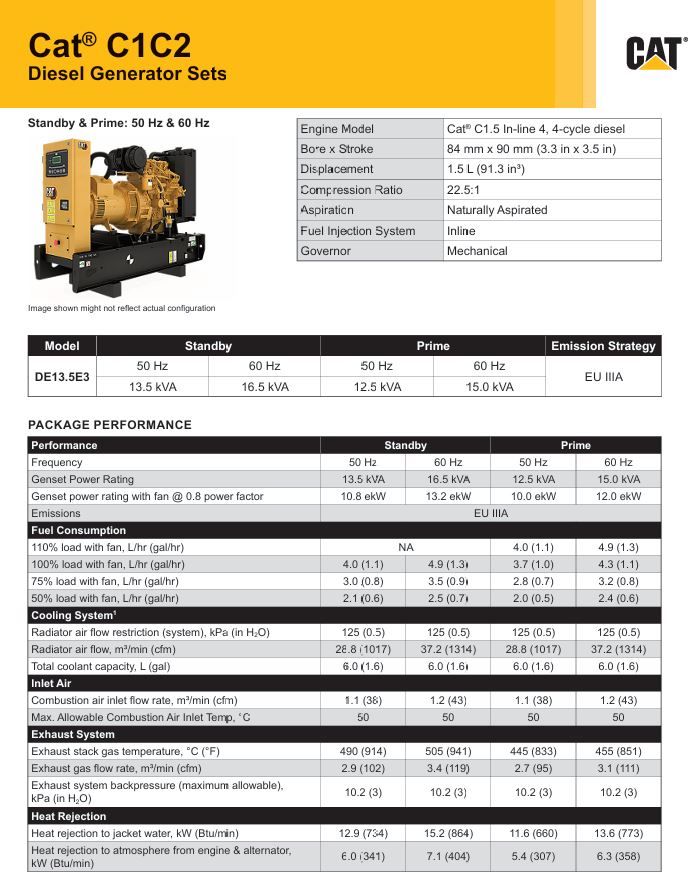

SPECIFICATIONS

Generator Set Specifications
Minimum Rating 13.5 kVA
Maximum Rating 13.5 kVA
Emissions/Fuel Strategy R96/EUIIIa Equivalent
Voltage 200 to 400 Volts
Frequency 50 Hz
Duty Cycle Standby, Prime

Air Inlet System

  • Air cleaner; light duty with disposable element
Control Panel
  • GCCP1.3 Control panel
Cooling System
  • Radiator and cooling fan with guards

Show More
