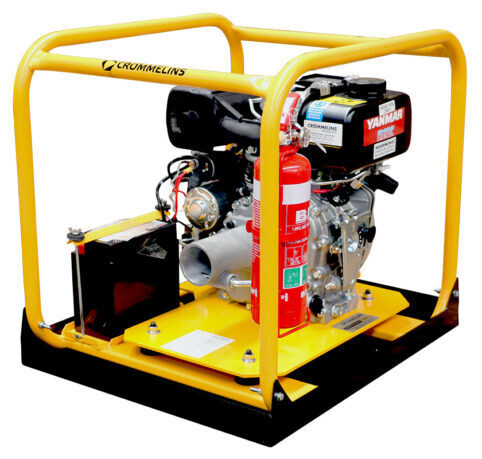

Crommelins Drive Unit Diesel Yanmar Electric Start Minespec 4.7hp

The diesel drive unit is mine site safe* and ready to use.

This drive unit diesel 4.7hp will drive submersible flexible drive pumps and concrete vibrators using its universal 3-dog style drive shaft. The electric start and mine-spec model are ideal for construction jobs on mine sites to power a wide range of flexible shaft equipment.

Mine-spec includes emergency stop, fire extinguisher, bunding, battery isolator and also recoil start lock to make it site safe* and ready for use.

Features include an Australian fabricated heavy-duty steel roll frame. Electric start allows an operator the ease of turning a key to start the unit. Quick action couplings allow for easy connections. It also features a rubber-mounted sub-frame to reduce vibration from the engine and shaft. Powered by a reliable Yanmar diesel engine.

Customisation options include; long-range fuel tank and also a central lifting bar. There is also a range of 28 to 60mm shafts available as well as extension shafts and pumps.

Assembled and tested in Australia. The drive unit comes with a two-year manufacturer’s warranty.

• Drives 2” Flexible drive submersible pumps ( FP2T & FP2TA )
• Drives vibrator Shafts
• Electric start
• Mine specification (Fire extinguisher, Emergency stop, bunding, battery isolator, recoil start lock)
• A rubber-mounted sub-frame between the engine and HD frame to ensure reduced vibration
• Full heavy-duty protective roll frame
