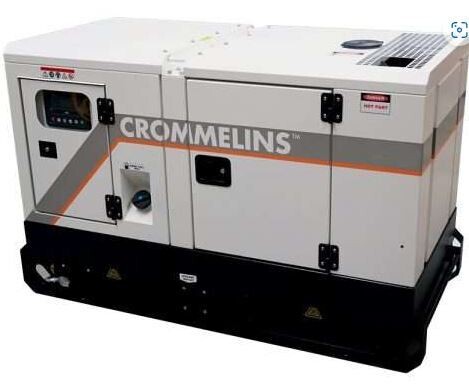

Crommelins Standby Generator Three Phase 19.0kVA

Standby Generator with Kubota diesel engine, Deep Sea controller.

This Crommelins generator standby outputs 15.2 Kw (19.0kVA max.) is for powering worksites, homes and for solar power backup needs.

The three-phase generator features a Japanese water-cooled Kubota diesel engine, Stamford alternator, and a Deep Sea Controller all coming in a heavy-duty compact silenced canopy with central lifting hook and also forklift pockets.

This generator has switched single and three-phase outlets for instant use, as well as a pre-wired socket outlet for ATS (Auto transfer switch). There is also a two-wire remote plug and hardwire facility making for simple use and installation. A generous 105L fuel tank assures 42hr running time at 75% load. Watch it in action here.

Backed by Crommelins Machinery Australia wide support and service network. Please note lead times may apply.

SPECIFICATIONS

Model Number	CHK20S3
Prime	17kVA / 13.6kw
Standby	19kVA / 15.2kw
Starting System	Electric Start
Phase	Three
Fuel Type	Diesel
15amp outlet s/phase	2x 15Amp
20amp outlet s/phase	1x 20Amp
32amp outlet 3/phase	1x 32Amp
Alternator	Stamford PI144D
Output Amps	23.7 / 26A
Voltage (V)	415v – 50hz
Engine Power/Model	V2203-BG
Engine Brand	Kubota
Fuel Tank (L)	105L
Running Time (Rated Output)	42hr
Noise Level (dB @ 7m)	64db
Weight (kg)	670kg
Dimensions (LxWxH)	1834 x 868 x 1115mm
Package (LxWxH)	1834 x 868 x 1115mm
Manufacturers Warranty	1 Year
