The GCW15P-S-PFL-AS is a dedicated single phase canopy model ideal for standby power in off grid and on grid applications, delivering 12 kVA power. The Perkins diesel engine is of high quality and alternator is made in Italy. They are superbly complimented by a robust, weatherproof enclosure and state of the art digital control panel.
The 51 litre fuel tank provides more than 14 hours of run time at a 75% load. The canopy’s internal polyurethane foam lining sound-proofs the unit to a level of 66dBA at a seven metre distance.

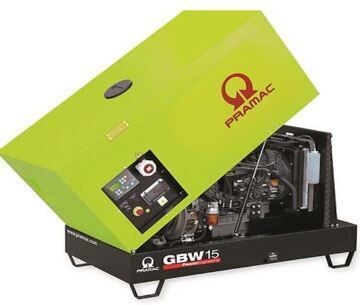

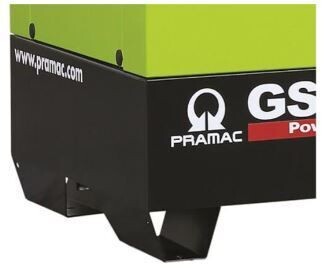

A solid steel base frame with integrated supported legs and vibration resistant mounts is complimented by a hinged soundproof canopy fitted with pneumatic arms permitting convenient access to the working genset for any required maintenance.
The Pramac units come fully pre-delivered in Australia and are comprehensively tested before supplying to the customer.
Features | |
Stand By Power LTP kW/kVA: | 12 / 12 |
Prime Power PRP kW/kVA: | 11 / 11 |
Voltage Volt/Frequency Hz: | 230 / 50 |
Phase: | Single |
Engine Brand: | Perkins |
Engine Model: | 403D-15G |
Engine Cooling System: | Water |
Fuel: | Diesel |
Number and Disposition of Cylinders: | 4 in line |
Displacement : | 2216cc |
Engine Aspiration: | Natural |
Starting System / Electric Circuit (Volt): | Electric / 12 |
Engine Speed : | 1500 rpm |
Engine Speed Governor: | Mechanical |
Engine Stand By Power LTP kW: | 13.5 |
Engine Prime Power PRP kW: | 12.2 |
Fuel Consumption at 75% / 100% PRP L/h : | 252 g/kWh at 75% Load |
Alternator Type: | Leroy-Somer |
Alternator Poles: | 4 |
Overall Dimension: | 1650mm(L) x 1000mm(W) x 1130mm(H) |
Net Weight (kg): | 500.0 kg |
Fuel Tank Capacity: | 51L |
