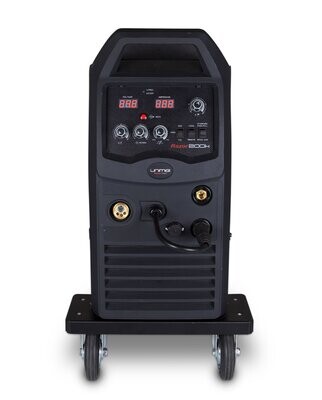

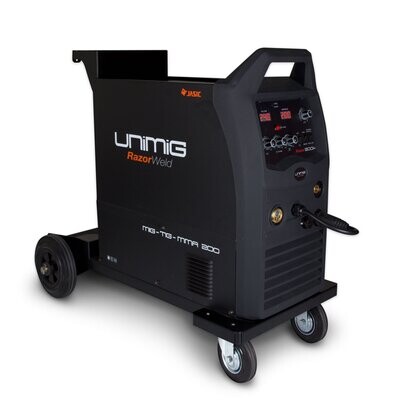

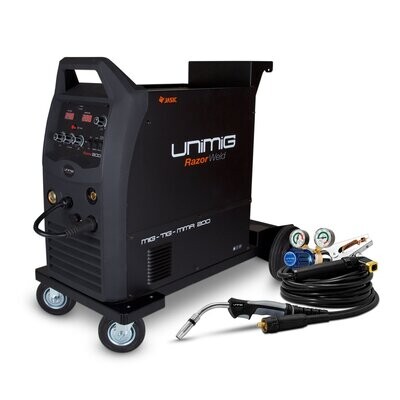

RAZOR 200 COMPACT MIG/TIG/STICK WELDER
+4
+3
+2

RAZOR 200 COMPACT MIG/TIG/STICK WELDER

Store / Welders / Single Phase 240v
AU$0.00
In stock
Product Details

Product No: KUMJR200K-SG

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

9.4

Ieff (A)

15.0

RATED OUTPUT

30A/15.5 - 200A/24.0V

NO LOAD VOLTAGE (V)

52

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.75

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-200A

MIG DUTY CYCLE @ 40°C

15% @ 200A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

35/25

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-200A

TIG DUTY CYCLE @ 40°C

15% @ 200A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-200A

STICK DUTY CYCLE @ 40°C

15% @ 200A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

SIZE & WEIGHT

DIMENSIONS (mm)

900x400x670mm

WEIGHT (kg)

57kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

PUSH / PULL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
