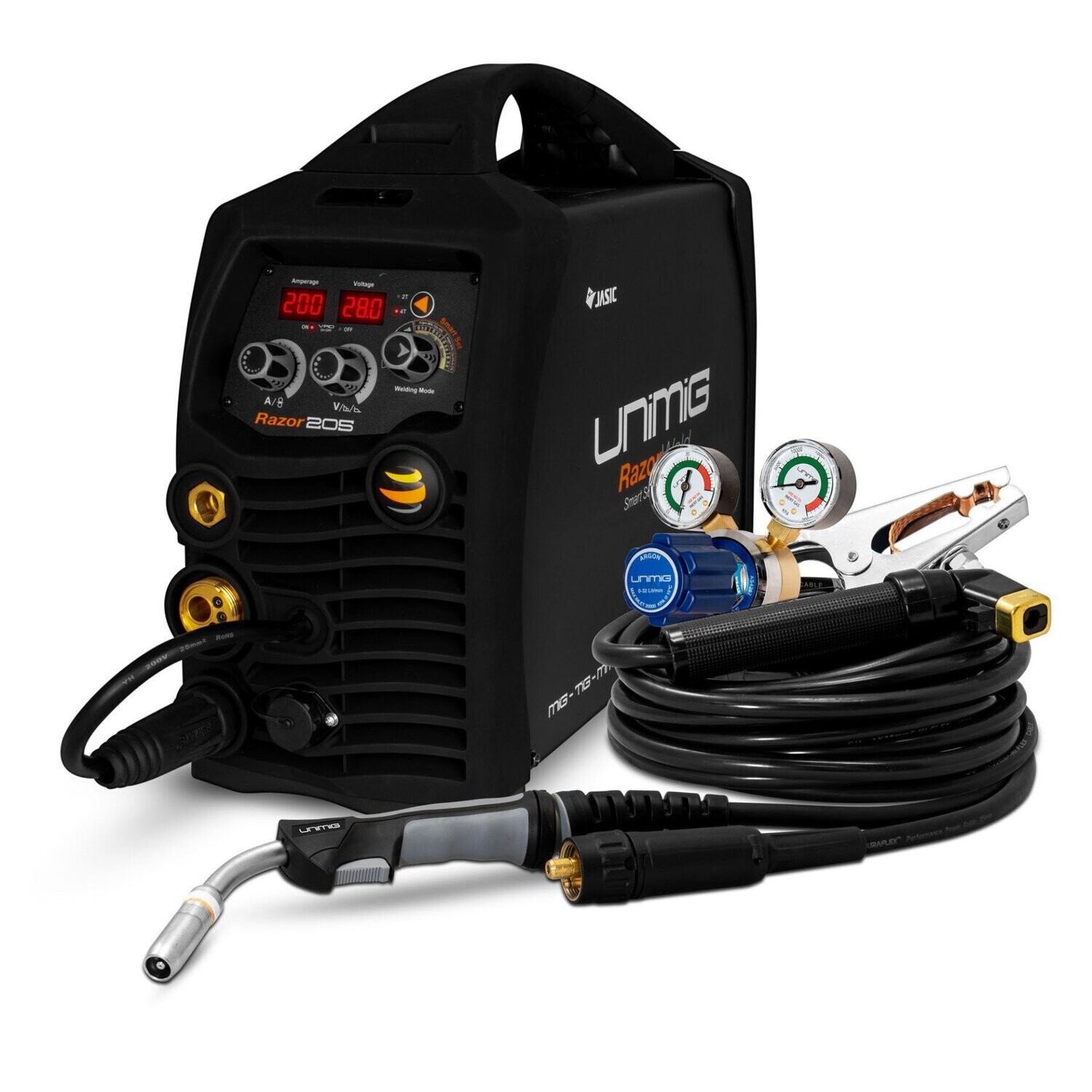

RAZOR 205 SMART SET MIG/TIG/STICK WELDER
+4
+3
+2

RAZOR 205 SMART SET MIG/TIG/STICK WELDER

Store / Welders / Single Phase 240v
AU$0.00
In stock
Product Details

Product No: KUMJRRW205SSMIG

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

9.4

Ieff (A)

15.0

RATED OUTPUT

30A/15.5V - 200A/24.0V

NO LOAD VOLTAGE (V)

53

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-200A

MIG DUTY CYCLE @ 40°C

20% @ 200A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-200A

TIG DUTY CYCLE @ 40°C

35% @ 200A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-200A

STICK DUTY CYCLE @ 40°C

15% @ 200A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2mm - 12mm

SIZE & WEIGHT

DIMENSIONS (mm)

470x190x380mm

WEIGHT (kg)

12.5kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
