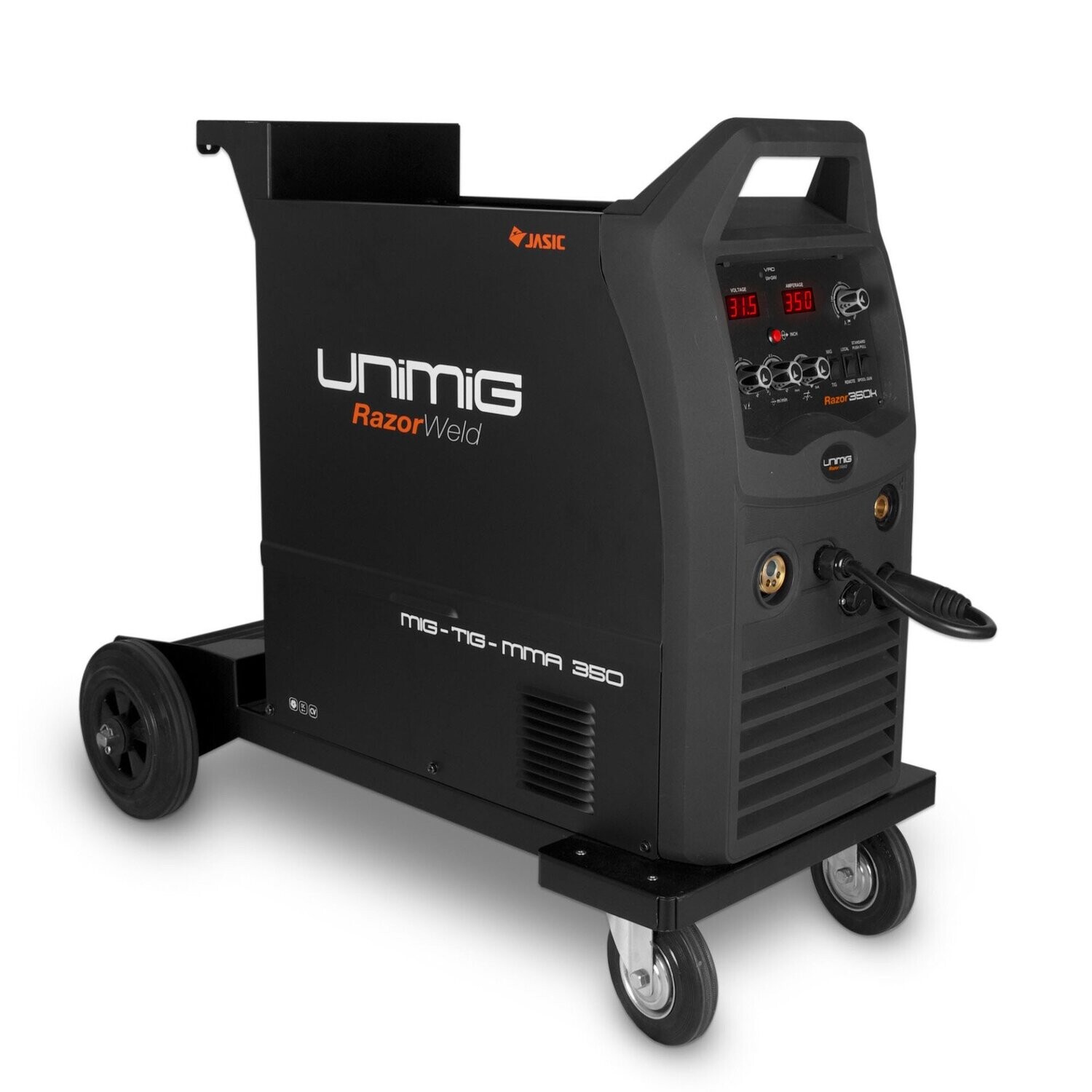

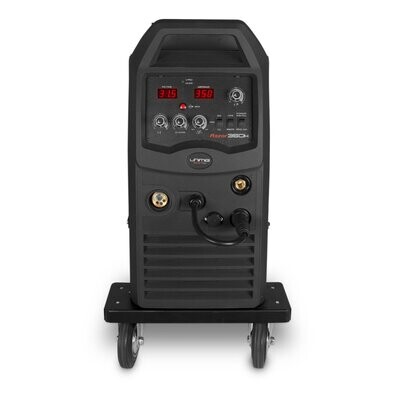

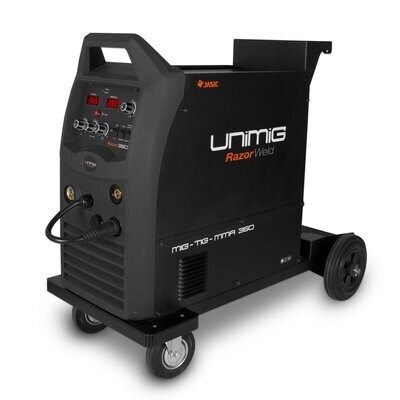

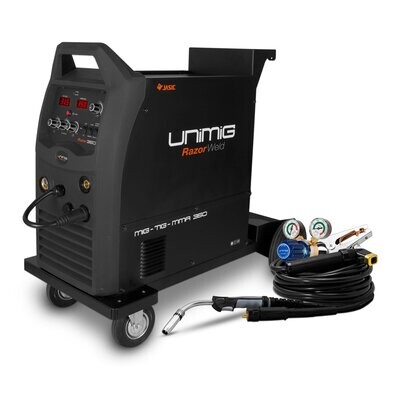

RAZOR 350 COMPACT MIG/TIG/STICK WELDER
+4
+3
+2

RAZOR 350 COMPACT MIG/TIG/STICK WELDER

Store / Welders / Three Phase 415v
AU$0.00
In stock
Product Details

Product No: KUMJR350K-SG

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

415V Three-Phase

SUPPLY PLUG

No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA)

15.0

Ieff (A)

13.7

RATED OUTPUT

50A/16.5V - 350A/31.5V

NO LOAD VOLTAGE (V)

64

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.75

MINIMUM GENERATOR (kVA)

20.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

50-350A

MIG DUTY CYCLE @ 40°C

40% @ 350A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-16mm

DRIVE ROLLER SIZE

30/22 (x2)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

20-350A

TIG DUTY CYCLE @ 40°C

40% @ 350A

TIG WELDING THICKNESS RANGE

2-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-350A

STICK DUTY CYCLE @ 40°C

40% @ 350A

STICK ELECTRODE RANGE

2.5-6.0mm

STICK WELDING THICKNESS RANGE

2-16mm

SIZE & WEIGHT

DIMENSIONS (mm)

900x400x670mm

WEIGHT (kg)

60kg

MACHINE FEATURES

WIRE DRIVE

4 Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

PUSH / PULL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
