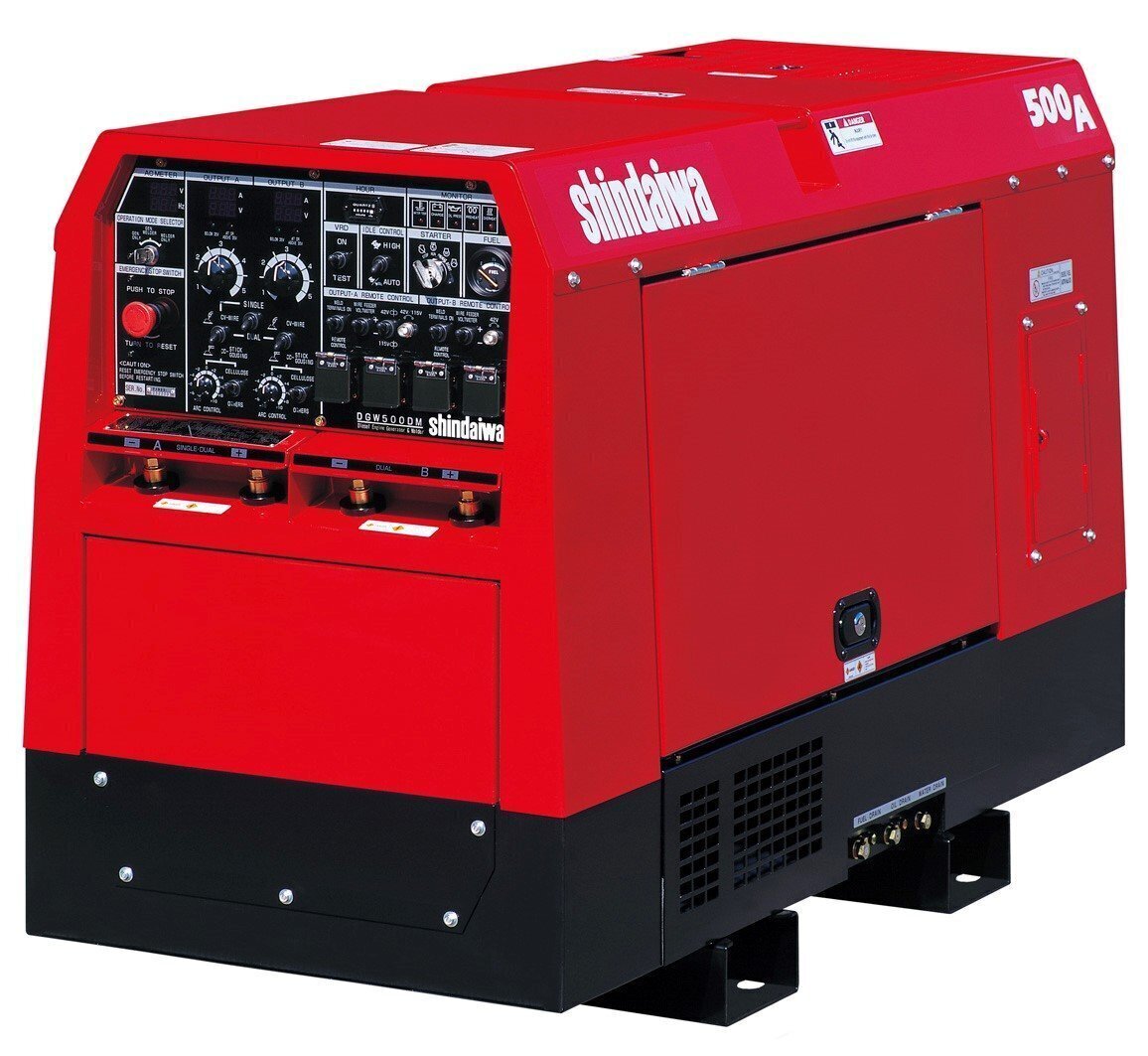

Shindaiwa DGW500DM-ANZ

the Largest Diesel Welder in our range provides 480Amps of welding power, dual operator stick or wire feeder capability on both A and B welding side. Pre-Dial Voltage or amperage, dual remote controls and 18kVA of auxiliary power. All this is packaged into a lightweight super silenced enclosure made to meet Australian mine site standards from the factory.

• - Dual Operator Feature – Can run 2 x Welders simultaneously. Single 480A, Dual 230A
• - Voltage Reduction Device; Constant Voltage;
• - Super Silenced 57dBA no load
• - High Generating Performance.
• - Automatic Engine Idle; Auto Engine Safety Shutdown; Starter Motor Burnout Protection.
• - Economical (Eco) Mode (2100rpm); Remote Control Facility.
• - 1-Phase, 12KVA, 240 Volt, 15amp x 3 - 3-Phase, 18KVA, 415 Volt, 20amp x 1
• - Protective Roll Frame and Slurry Tank with Gauge
• Engine Model:Kubota V1505, Vertical, Water Cooled 4 Cycle Diesel Engine.63L Fuel Tank
• Dimensions:(L) 1680mm x (W) 700mm x (H) 950mm, Dry Weight:613kg
