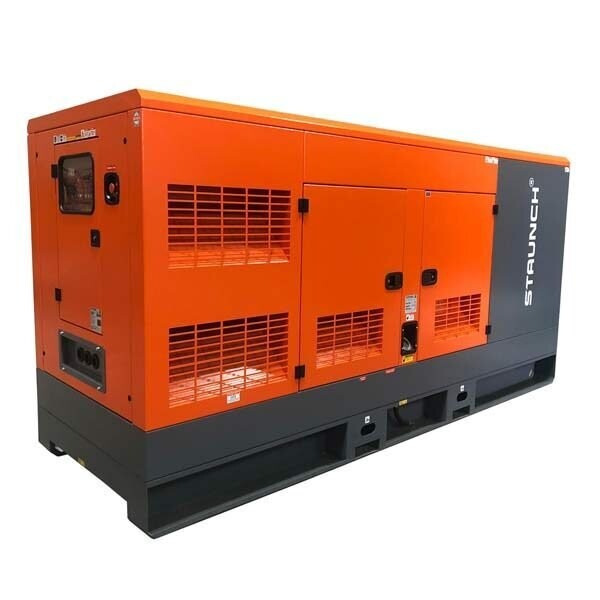

Staunch Cummins 110kva Generator STCG110S-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 100.0 kVA
Standby Rated Output 110.0 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415 V
Available Voltages 240/415 V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 93.0 kW
Standby Power 102.0 kW
Manufacturer CUMMINS
Model 6BTA5.9-G5
Injection Type Direct
Aspiration Type Turbocharged and charged air cooled
Cylinders Arrangement 4 – inline
Bore and Stroke 102 x 120 mm
Displacement 5.9 L
Cooling System Jacket water after cooled
Fuel Consumption 100% PRP 25.0l/h
Fuel Consumption 75 % PRP 18.0 l/h
Fuel Consumption 50 % PRP 12.0l/h
Total Oil Capacity 16.4 L
Total Coolant Capacity 19.75 L
Governing Class ISO 8528
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
MARELLI MJB 225 MA4
Poles 4
Phase Three
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 600 L
Autonomy 100% load 24 Hours
Weight and Dimensions
Length 1526 mm
Height 817 mm
Width 1262 mm
Weight (dry) Kg
Noise level @ 7m 65 dB
