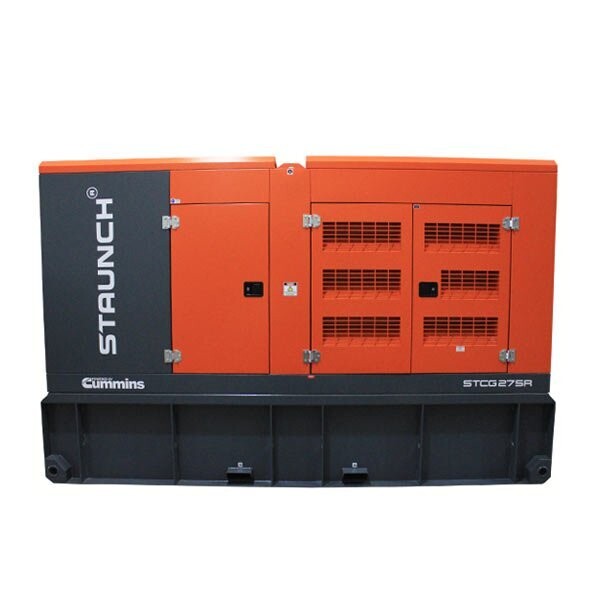

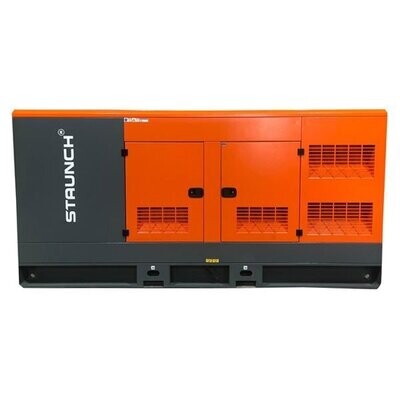

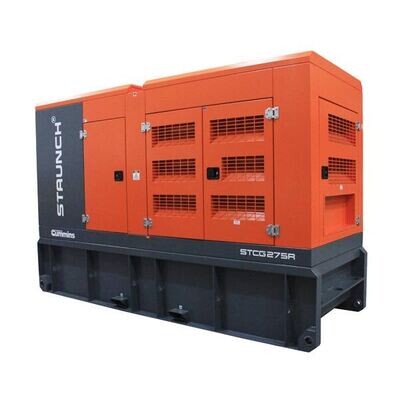

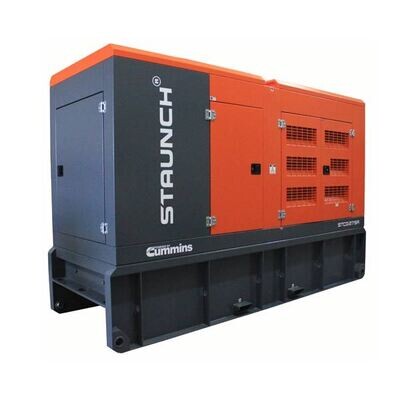

Staunch Cummins 330kva Generator STCG330R-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 300 kVA
Standby Rated Output 330 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415 V
Available Voltages 240/415 V
Rated at power factor 0.8 Cos Phi

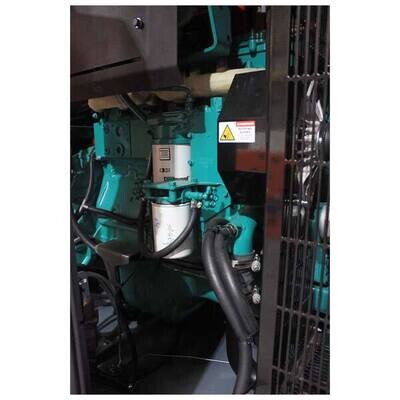

ENGINE SPECS
Prime Power 268 kW
Standby Power 310 kW
Manufacturer CUMMINS
Model QSL9-G5
Injection Type Direct
Aspiration Type Turbocharged, air cooled
Cylinders Arrangement in line
Bore and Stroke 114 x 145 mm
Displacement 8.9 L
Cooling System Air charge cooled
Fuel Consumption 100% PRP 63 l/h
Fuel Consumption 75 % PRP 46 l/h
Fuel Consumption 50 % PRP 31 l/h
Total Oil Capacity 26.5 L
Total Coolant Capacity 15.0 L
Governing Class ISO 8528
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
MARELLI MJB 315 SA4
Poles 4
Phase Three

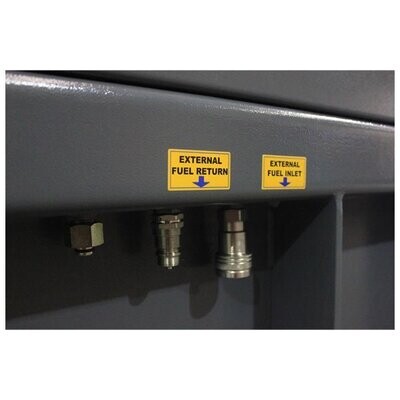

FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 1,350 L
Autonomy 100% load 24 Hours
Weight and Dimensions
Length 1624 mm
Height 1064 mm
Width

1463 mm
Weight (dry) Kg
Noise level @ 7m 65 dB
