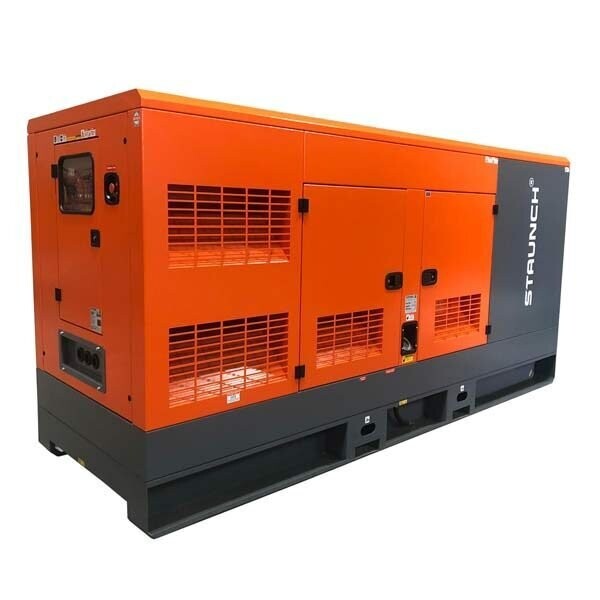

Staunch Cummins 400kva Generator STCG400S-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 365 kVA
Standby Rated Output 400 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415 V
Available Voltages 240/415 V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 351 kW
Standby Power 317 kW
Manufacturer CUMMINS
Model NTA855-G4
Injection Type Direct
Aspiration Type Turbocharged
Cylinders Arrangement in line
Bore and Stroke 140 x 152 mm
Displacement 14.0 L
Cooling System Jacket water after cooled
Fuel Consumption 100% PRP 76 l/h
Fuel Consumption 75 % PRP 57 l/h
Fuel Consumption 50 % PRP 39 l/h
Total Oil Capacity 38.6 L
Total Coolant Capacity 45.0 L
Governing Class ISO 8528
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
MARELLI MJB 315 SB4
Poles 4
Phase Three
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 1,800 L
Autonomy 100% load 24 Hours
Weight and Dimensions
Length 2055 mm
Height 990 mm
Width 1535 mm
Weight (dry) Kg
Noise level @ 7m 65 dB
