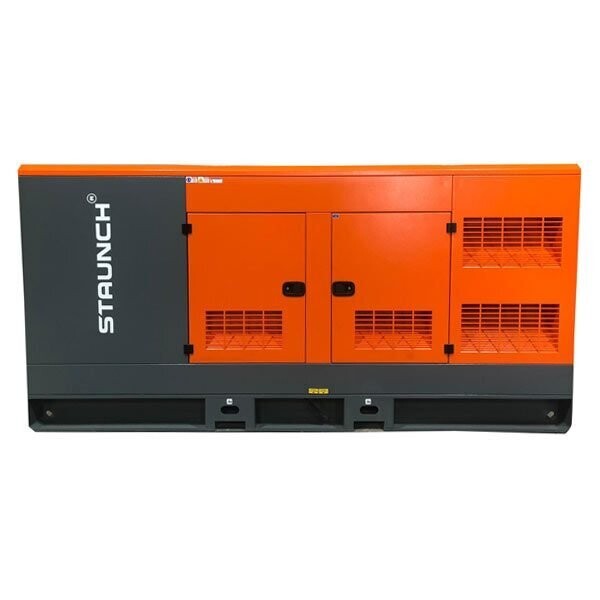

Staunch Cummins 450kva Generator STCG450S-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 409 kVA
Standby Rated Output 450 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415 V
Available Voltages 240/415 V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 366 kW
Standby Power 407 kW
Manufacturer CUMMINS
Model QSX15-G4
Injection Type Direct
Aspiration Type Turbocharged , air cooled
Cylinders Arrangement in line
Bore and Stroke 137 x 169 mm
Displacement 15.0 L
Cooling System Air charge cooled
Fuel Consumption 100% PRP 85.7 l/h
Fuel Consumption 75 % PRP 67 l/h
Fuel Consumption 50 % PRP 45.7 l/h
Total Oil Capacity 91 L
Total Coolant Capacity 42.0 L
Governing Class ISO 8528
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
MARELLI MJB 315 MA4
Poles 4
Phase Three
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 2,050 L
Autonomy 100% load 24 Hours
Weight and Dimensions
Length 4800 mm
Height 2490 mm
Width 1550 mm
Weight (dry) 4100 Kg
Noise level @ 7m 65 dB
