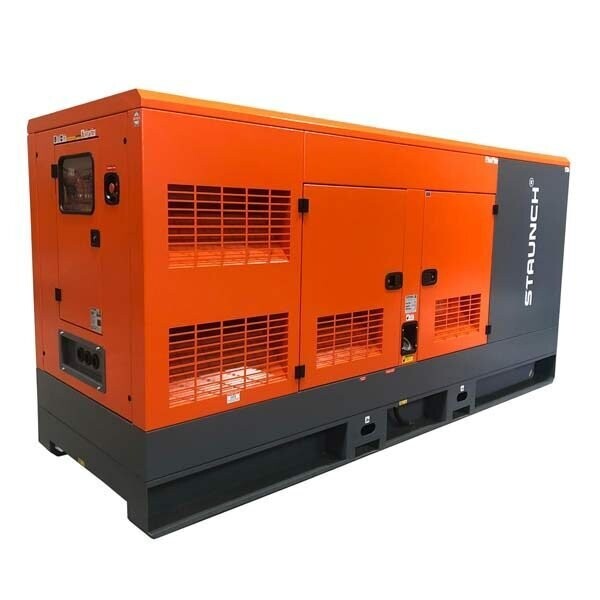

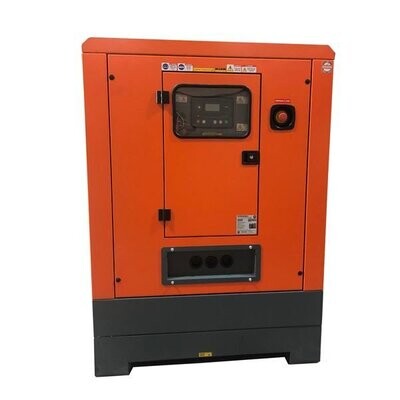

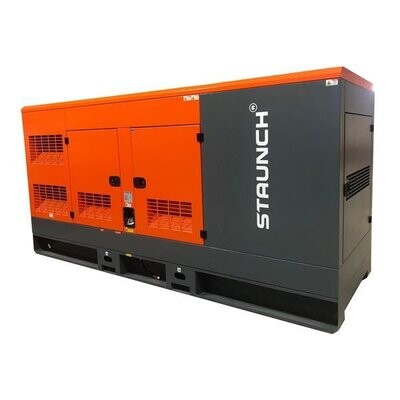

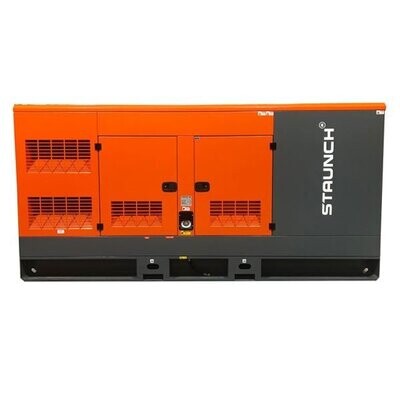

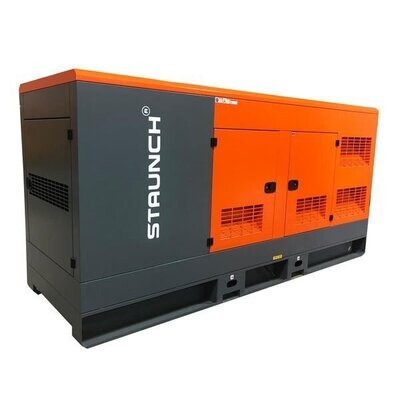

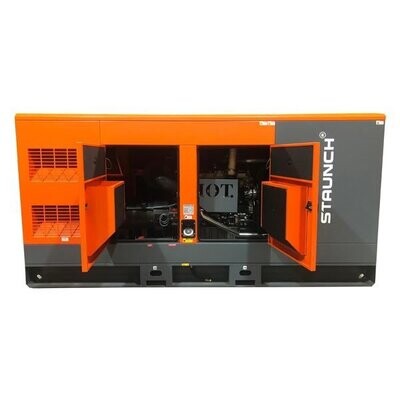

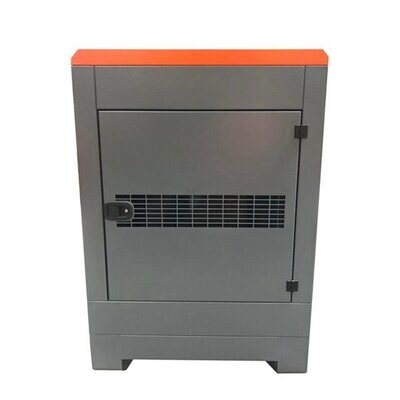

Staunch Perkins 150kva Generator STPG150S-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 135kVA
Standby Rated Output 150kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415V
Available Voltages 240-480V
Rated at power factor 0.8 Cos Phi

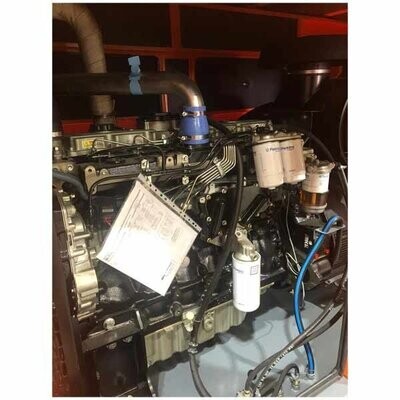

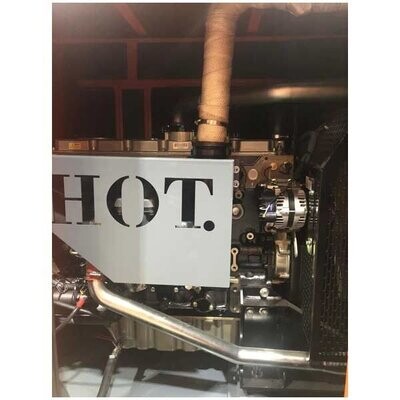

ENGINE SPECS
Prime Power 120.4kW
Standby Power 141kW
Manufacturer PERKINS
Model 1006TAG
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Natural
Cylinders Arrangement Vertical in line
Bore and Stroke 100 x 127 mm
Displacement 5.99 L
Cooling System Water – cooled
Lube Oil Specifications SAE 3 class 15W40 / API grade CD,CF
Fuel Consumption 100% PRP 31.5 l/h
Fuel Consumption 75 % PRP 24.1 l/h
Fuel Consumption 50 % PRP 16.5 l/h
Total Oil Capacity 19L
Total Coolant Capacity 37.22 L
Governor Mechanical
Air Filter Dry – Single Element
Inner diameter exhaust pipe mm
ALTERNATOR SPECS
STAMFORD UCI274E
Poles 4
Phase 3

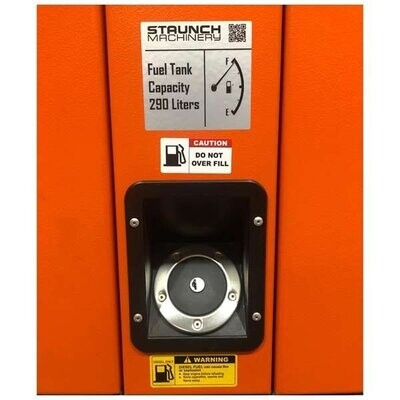

FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 275L
Autonomy 100% load 8.73 Hours
Weight and Dimensions
Length 2250mm
Height 1270mm
Width 900mm
Weight (dry) 1480Kg
Noise level @ 7m 69dB
