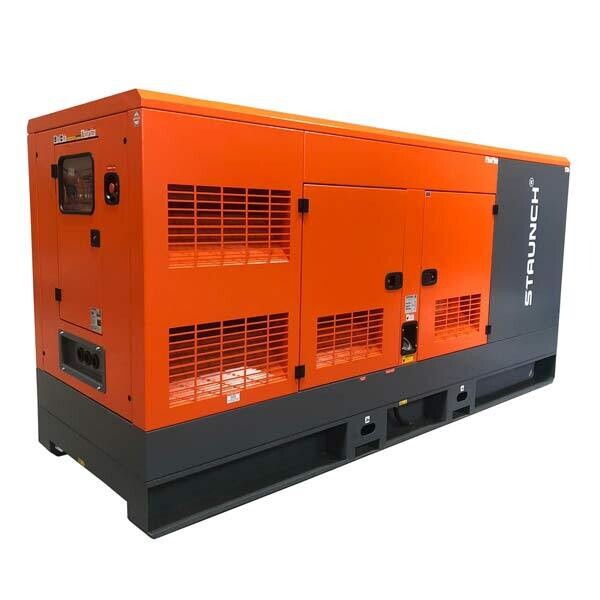

Staunch Perkins 220kva Generator STPG220S-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 200 kVA
Standby Rated Output 220 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415 V
Available Voltages 240/415 V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 200 kW
Standby Power 220 kW
Manufacturer PERKINS
Model 1106A-70TAG4
Injection Type Direct
Aspiration Type Turbocharged and charged air cooled
Cylinders Arrangement in line 6 Cylinder
Bore and Stroke 105 x 135mm
Displacement 7.01 L
Cooling System Liquid
Fuel Consumption 100% PRP 45.8 l/h
Fuel Consumption 75 % PRP 34.7 l/h
Fuel Consumption 50 % PRP 23.1 l/h
Total Oil Capacity 16.5 L
Total Coolant Capacity 21.0 L
Governing Class ISO 8528
Air Filter Single Element
Inner diameter exhaust pipe mm
ALTERNATOR SPECS
MARELLI MJB 250 LA4
Poles 4
Phase Three
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 290 L
Autonomy 100% load 6.5Hours
Weight and Dimensions
Length 3500 mm
Height 1730 mm
Width 1200 mm
Weight (dry) 2250Kg
Noise level @ 7m 67 dB
