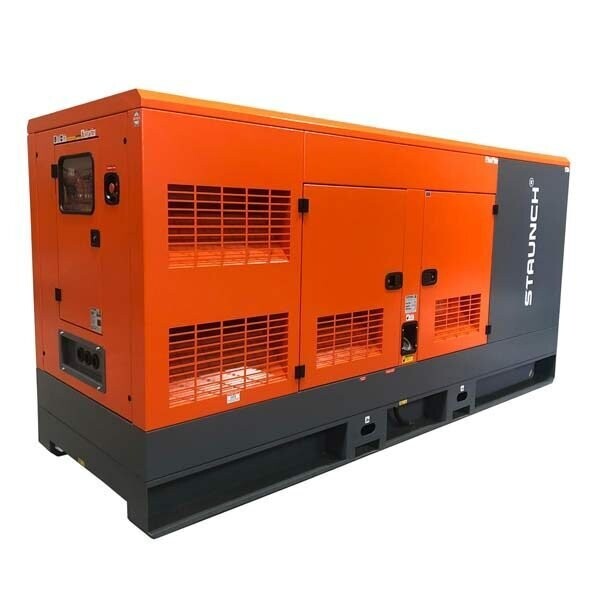

Staunch Perkins 330kva Generator STPG330S-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 300 kVA
Standby Rated Output 330 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415V
Available Voltages 240-480V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 267kW
Standby Power 293kW
Manufacturer PERKINS
Model 1506A-E88TAG5
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Natural
Cylinders Arrangement Vertical in line
Bore and Stroke 112 x 149 mm
Displacement 8.8 L
Cooling System Water – cooled
Lube Oil Specifications SAE 3 class 15W40 / API grade CD,CF
Fuel Consumption 100% PRP 65 l/h
Fuel Consumption 75 % PRP 48 l/h
Fuel Consumption 50 % PRP 33 l/h
Total Oil Capacity 41 L
Total Coolant Capacity 31 L
Governor Mechanical
Air Filter Dry – Single Element
Inner diameter exhaust pipe mm
ALTERNATOR SPECS
STAMFORD MJB 315 SA4
Poles 4
Phase 3
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 500 L
Autonomy 100% load 7.69 Hours
Weight and Dimensions
Length 3900 mm
Height 1850 mm
Width 1200 mm
Weight (dry) 2950 Kg
Noise level @ 7m 69dB
