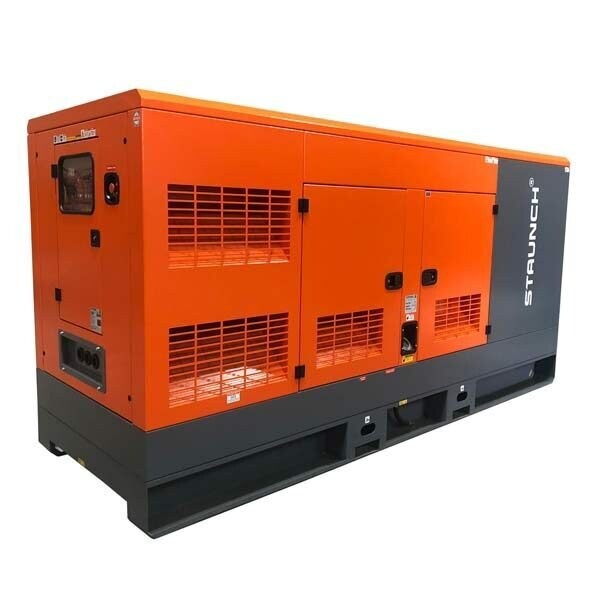

Staunch Perkins 550kva Generator STPG550S-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 500 kVA
Standby Rated Output 550 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415V
Available Voltages 240-480V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 451 kW
Standby Power 495 kW
Manufacturer PERKINS
Model 2506A-E15TAG2
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Natural
Cylinders Arrangement Vertical in line
Bore and Stroke 137 x 171 mm
Displacement 15.2 L
Cooling System Water – cooled
Lube Oil Specifications SAE 3 class 15W40 / API grade CD,CF
Fuel Consumption 100% PRP 98.5 l/h
Fuel Consumption 75 % PRP 75.2 l/h
Fuel Consumption 50 % PRP 54.0 l/h
Total Oil Capacity 62.0 L
Total Coolant Capacity 58.1 L
Governor Mechanical
Air Filter Dry – Single Element
Inner diameter exhaust pipe mm
ALTERNATOR SPECS
STAMFORD MJB 355 SA4 / HC544D
Poles 4
Phase 3
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 704 L
Autonomy 100% load 7.12 Hours
Weight and Dimensions
Length 4800 mm
Height 2490 mm
Width 1550 mm
Weight (dry) 4500 Kg
Noise level @ 7m 69dB
