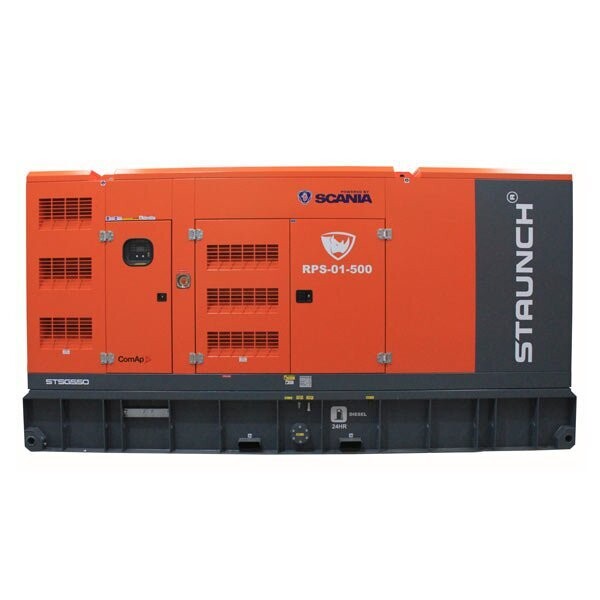

Staunch Scania 550kva Generator STSG550R

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 503 kVA
Standby Rated Output 553 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415V
Available Voltages 240-480V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 403 kW
Standby Power 442 kW
Manufacturer SCANIA
Model DC13 072A(ref 02-11)
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Natural
Cylinders Arrangement 6 in line
Bore and Stroke 130 x 160 mm
Displacement 12.7L
Cooling System Water – cooled
Lube Oil Specifications SAE 3 class 15W40 / API grade CD,CF
Fuel Consumption 100% PRP 89.8 l/h
Fuel Consumption 70 % PRP 61.7 l/h
Fuel Consumption 50 % PRP 44.2 l/h
Total Oil Capacity 30-36 L
Total Coolant Capacity L
Governor Electrical
Air Filter Dry – Single Element
Inner diameter exhaust pipe mm
ALTERNATOR SPECS
Marelli MJB 355 SA
Poles 4
Phase 3
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 1,450 L
Autonomy 100% load 16 Hours
Weight and Dimensions
Length 4950 mm
Height 2550 mm
Width 1600 mm
Weight (dry) 5370 Kg
Noise level @ 7m 69dB
