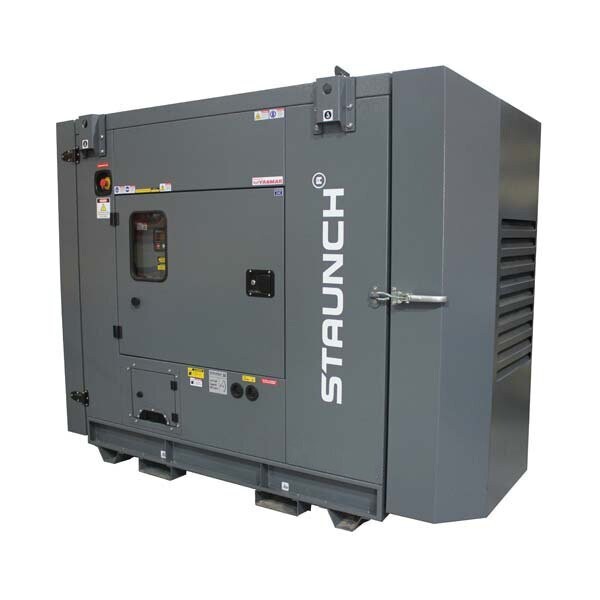

Staunch Yanmar 13kva Generator STYG13SS-1S
+4
+3
+2

Staunch Yanmar 13kva Generator STYG13SS-1S

Store / Generators / Large Diesel / Single Phase 240v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 13.0 kVA
Standby Rated Output 15.0 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 240 V
Available Voltages 240/415 V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 10.4 kW
Standby Power 12.0 kW
Manufacturer YANMAR
Model 3TNV88
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Natural
Cylinders Arrangement 3 – L
Bore and Stroke 88 x 90 mm
Displacement 1.642 L
Cooling System coolant
Lube Oil Specifications SAE 3 class 10W30 / API grade CD,CF
Fuel Consumption 100% PRP 3.59 l/h
Fuel Consumption 75 % PRP 2.74 l/h
Fuel Consumption 50 % PRP 2.0 l/h
Total Oil Capacity 4.4 L
Total Coolant Capacity 4.8 L
Governor Mechanical
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54mm
ALTERNATOR SPECS
STAMFORD P1044G
Poles 4
Phase Single
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 90 L
Autonomy 100% load 25 Hours
Weight and Dimensions
Length 2380 mm
Height 1770 mm
Width

900 mm
Weight (dry) Kg
Noise level @ 7m 55 dB
Show More
