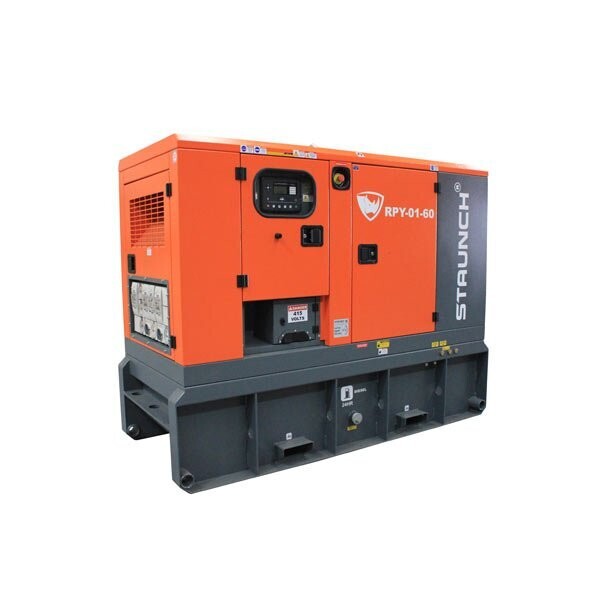

Staunch Yanmar 66kva Generator STYG66R-M

Store / Generators / Large Diesel / Three Phase 415v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 60.0 kVA
Standby Rated Output 66.0 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 415 V
Available Voltages 240/415 V
Rated at power factor 0.8 Cos Phi
ENGINE SPECS
Prime Power 50.9 kW
Standby Power 56.0 kW
Manufacturer YANMAR
Model 4TNV106T
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Turbocharged
Cylinders Arrangement 4 – inline
Bore and Stroke 106 x 125 mm
Displacement 4.412 L
Cooling System Water
Lube Oil Specifications SAE 10W30 / API grade CD
Fuel Consumption 100% PRP 12.2 l/h
Fuel Consumption 75 % PRP 9.2 l/h
Fuel Consumption 50 % PRP 6.1 l/h
Total Oil Capacity 18 L
Total Coolant Capacity 9.0 L
Governor Centrifugal
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
MARELLI MXB 180 LB4
Poles 4
Phase Three
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 330 L
Autonomy 100% load 24 Hours
Weight and Dimensions
Length 2280 mm
Height 1710 mm
Width

980 mm
Weight (dry) 1450Kg
Noise level @ 7m 66 dB
