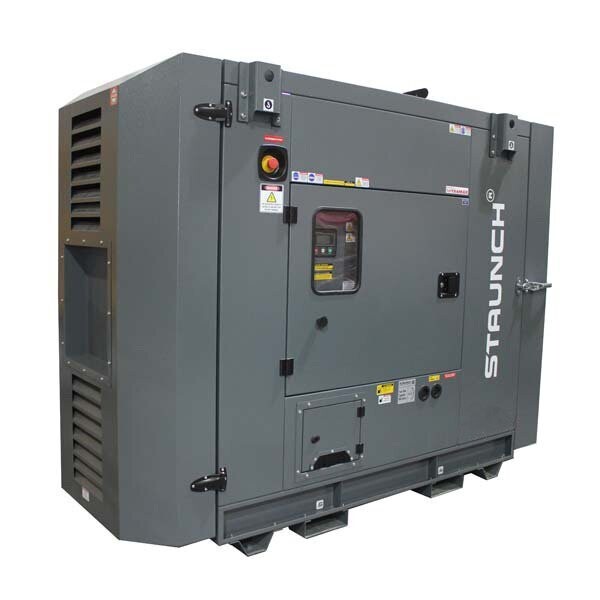

Staunch Yanmar 7kva Generator STYG9SS-1ST

Store / Generators / Large Diesel / Single Phase 240v
AU$0.00
In stock
Product Details
GENERATOR SPECS
Prime Rated Output 7 kVA
Standby Rated Output 7.7 kVA
Rated Speed 1500 r.p.m.
Standard Voltage 240 V
Available Voltages 240/415 V
Rated at power factor 1.0 Cos Phi
ENGINE SPECS
Prime Power 7.2 kW
Standby Power 7.9 kW
Manufacturer YANMAR
Model 3TNV76
Engine Type Diesel 4 strokes-cycle
Injection Type Direct
Aspiration Type Natural
Cylinders Arrangement 3 – L
Bore and Stroke 76 x 82 mm
Displacement 1.116 L
Cooling System coolant
Lube Oil Specifications SAE 3 class 10W30 / API grade CD,CF
Fuel Consumption 100% PRP 2.31 l/h
Fuel Consumption 75 % PRP 1.77 l/h
Fuel Consumption 50 % PRP 1.4 l/h
Total Oil Capacity 4.4 L
Governor Mechanical
Air Filter Dry – 4” Single Element
Inner diameter exhaust pipe 54 mm
ALTERNATOR SPECS
STAUNCH STA164C
Poles 4
Phase Single
FUEL SYSTEM
Fuel Specifications Diesel
Fuel Tank volume 75 L
Autonomy 100% load 32.5 Hours
Weight and Dimensions
Length 2250 mm
Height 1670 mm
Width

900 mm
Weight (dry) Kg
Noise level @ 7m 55 dB
