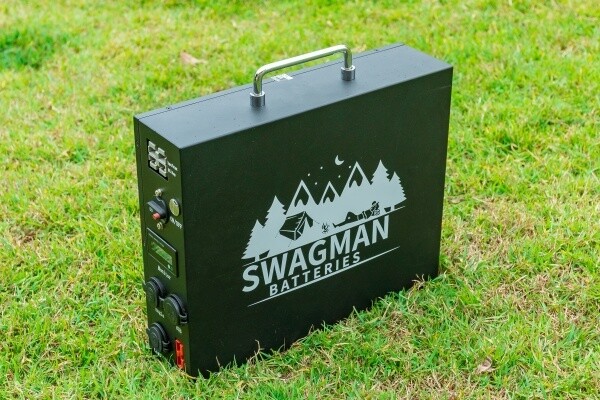

Swagman Slimline Battery

The Swagman battery is a lightweight 14kg and small 360mm (L) x 300mm (D) x 95mm (H) dimension that allows it to be used in a wide variety of applications.

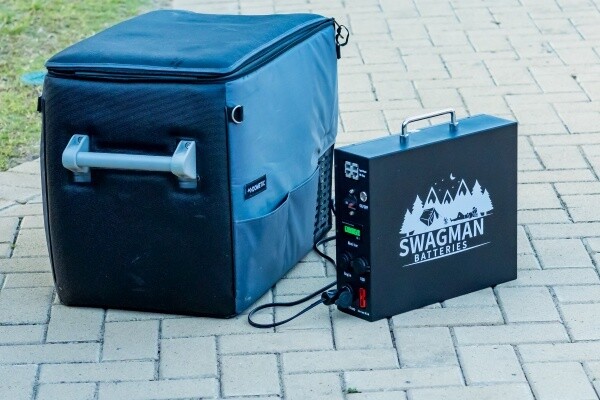

With a massive 50amp output from the 100ah Lifepo4 lithium battery system the Swagman battery has the flexibility to run a huge range of devices such as 12v Fridge, freezers, Cpap machines, 12v lighting, LED worklights, 240v inverters, recharge battery powered tools and the list goes on.

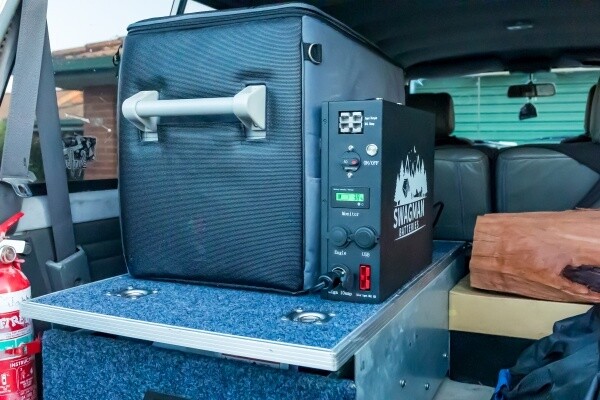

It can be permanently mounted and hard wired to your vehicle or used as a mobile power supply around your campsite or home.

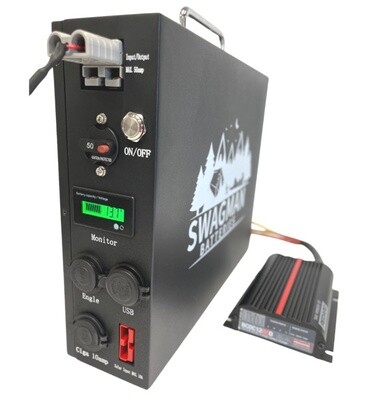

Charging

• Charge by regulated 50 amp charging input / or
• In built MPPT 10 amp solar charge controller
• 10 amp 240v AC charger

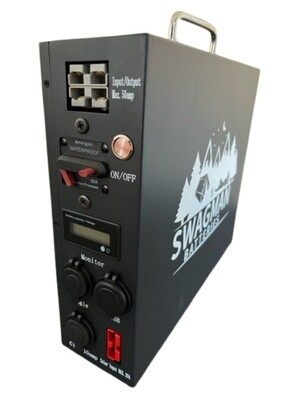

Features

• Lightweight portable design
• Space saving size and strong metal casing
• Robust Australian design to suit rough outback conditions
• 1x Ciga (cigarette) socket outlet
• 1x Engel style fridge outlet
• 2x 50 amp Anderson plug outputs
• 2x USB outputs
• Voltage monitor
• Total maximum output is a huge 50 amps
• Over 3000 cycles average
• 24 Months manufacturer warranty

Quick start guide

• Fully charge unit before use
• Do not use Swagman Battery as a jumpstarter
• Charge by regulated DC charger up to 50 amps, Solar panel or supplied 240v charger only
• All outputs are rated to 10amp except Anderson which is rated at 50amps with a total unit output no more than 50amps
• Mounting thread depth to be no longer than 20mm.

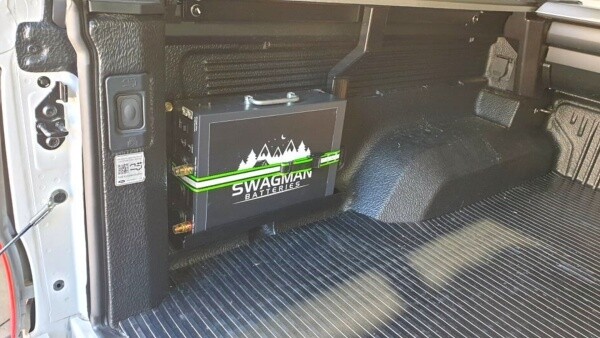

Your Swagman battery has integrated M6 threads that can be used to fit custom brackets or our universal Swagman brackets for a safe secure install to your vehicle.

Swagman batteries is a locally owned and operated QLD business that designs and develops leading lithium battery systems for the Camping, Caravan & 4wd communities.
