UNIMIG RAZOR TIG 200 DC
+4
+3
+2

UNIMIG RAZOR TIG 200 DC

Store / Welders / Single Phase 240v
AU$0.00
In stock
Product Details

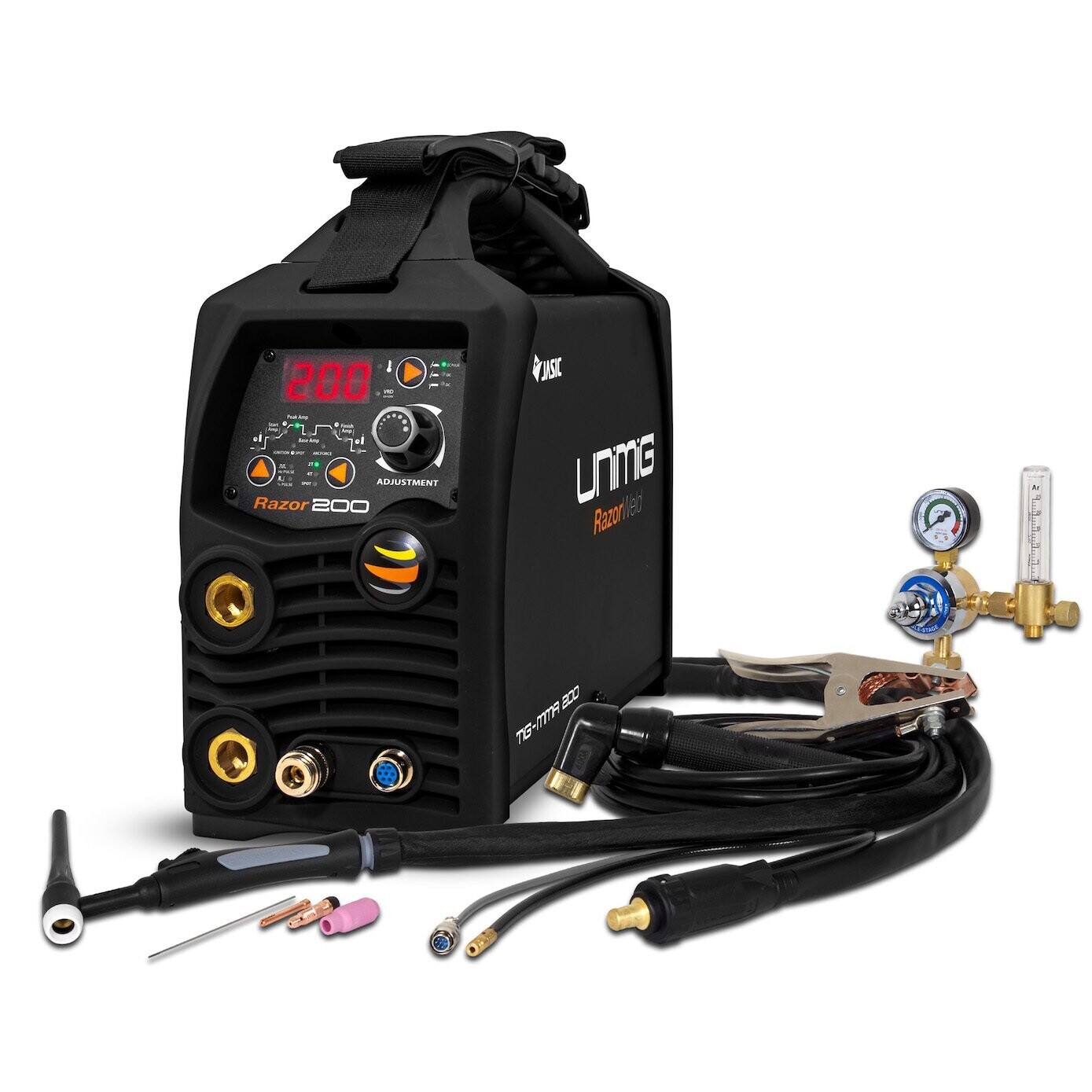

The RAZOR™ 200 AC/DC gives you full control over High Frequency AC/DC TIG welding for incredible results from start to finish. Fitted with a portable 15 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite.

Tailor your TIG settings with a wide range of controllable parameters including Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time.

The all-new ARC TORCHOLOGY T2 TIG Torch comes standard with the RAZOR™ 200 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.


Product No: KUM-M-RTIG200ACDC

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

6.0

Ieff (A)

15.0

RATED OUTPUT

5-200A

NO LOAD VOLTAGE (V)

9-68

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys

WARRANTY (Years)

3

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC HF TIG & AC/DC Pulse

TIG WELDING CURRENT RANGE

5-200A

TIG DUTY CYCLE @ 40°C

25% @ 200A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-160A

STICK DUTY CYCLE @ 40°C

30% @ 160A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

ARC FORCE

0-40

SIZE & WEIGHT

DIMENSIONS (mm)

426x162x326mm

WEIGHT (kg)

10kg
