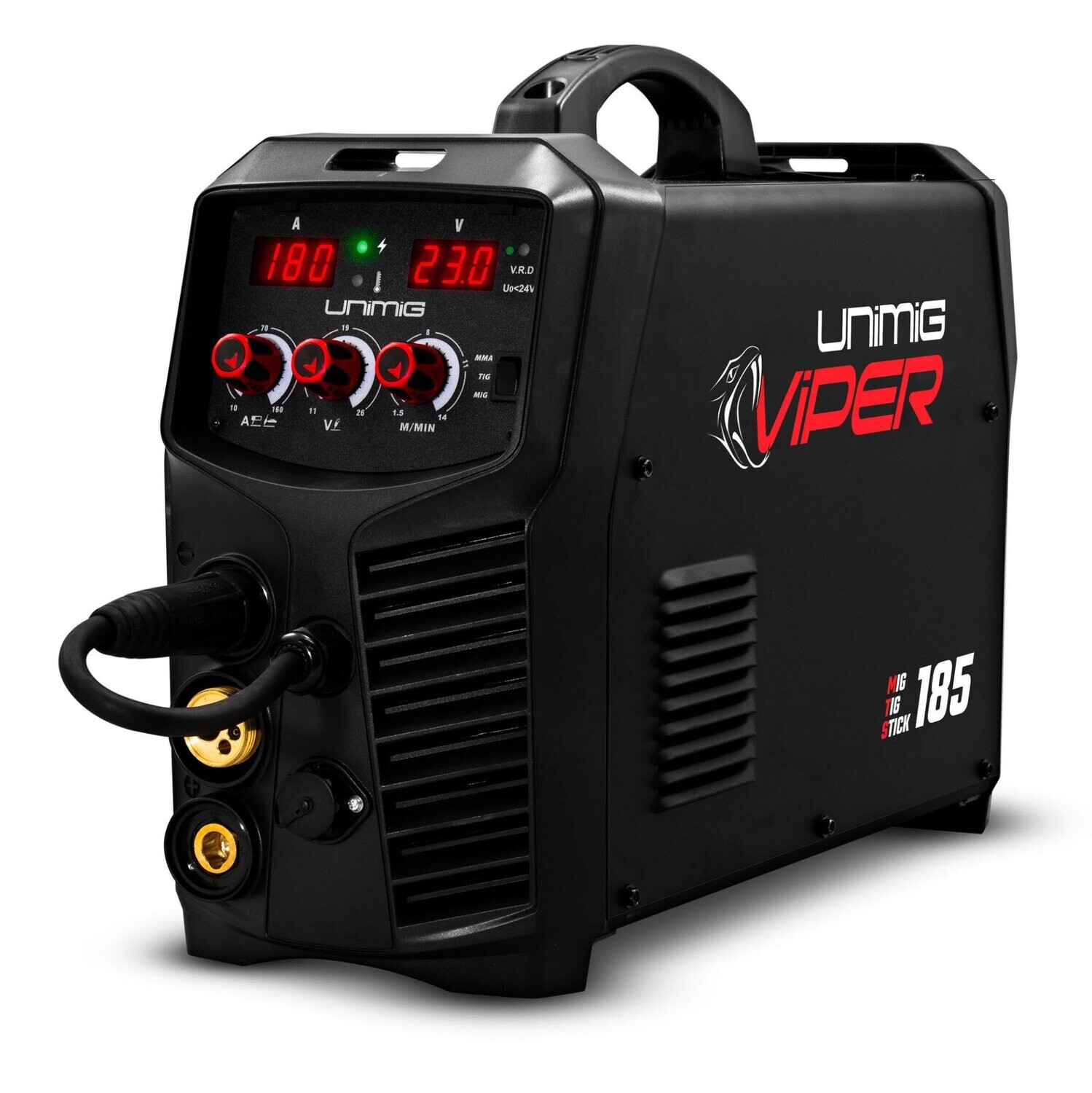

VIPER 185 MIG/TIG/STICK WELDER
+4
+3
+2

VIPER 185 MIG/TIG/STICK WELDER

Store / Welders / Single Phase 240v
AU$0.00
In stock
Product Details

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

7.1

Ieff (A)

9.8

RATED OUTPUT

30A/15.5V - 180A/23.0V

NO LOAD VOLTAGE (V)

62

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

2

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-180A

MIG DUTY CYCLE @ 40°C

10% @ 180A

MIG WIRE SIZE RANGE

0.6-0.9mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-160A

TIG DUTY CYCLE @ 40°C

10% @ 160A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-160A

STICK DUTY CYCLE @ 40°C

10% @ 160A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

SIZE & WEIGHT

DIMENSIONS (mm)

553x214x388mm

WEIGHT (kg)

12.0kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

THERMAL OVERLOAD PROTECTION

Yes
